PR-6(4I/2O) series
Manufacturer: Rievtech
PR-6 Series(Smart Relay) is the entry level model of xLogic Micro PLC family, able to process up to 64 function blocks in a single program, also is the perfect maintenance product, and yet can adequately control a new process from the start. PR-6 Series is capable of replacing many of the discrete components(such as multiple timers, relays, contactors and counters etc) used in conventional systems, opening up a whole new range of possibilities for economical simple control solutions. PR-6 Series exclude expansion feature , NO keypad panel , NO PWM output & High Speed pulse counting capabilities, merely incorporating digital IO, clock with calendar, counters , timers, and available in 120/240VAC or 12V/24VDC versions. Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software.
Description
| Model | Expansion | Supply volt | Inputs | Outputs | High-speed count | PWM | HMI | RTC | G . W(G) |
|---|---|---|---|---|---|---|---|---|---|

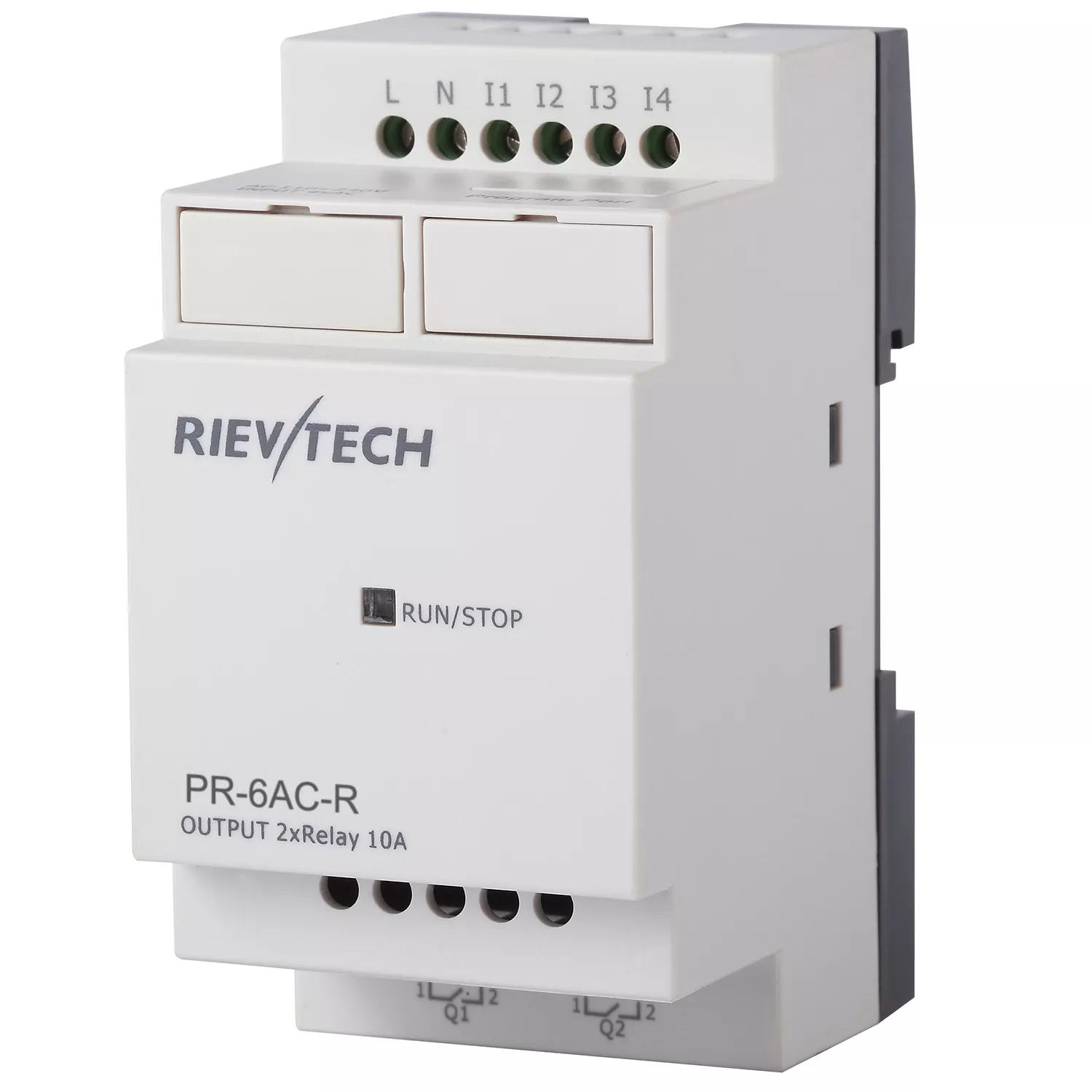

| PR-6AC-R | NO | AC 110～240V | 4 DI | 2 relays(10A) | NO | NO | NO | YES | 180 |
| PR-6DC-DA-R | NO | DC12V-24V | 4 DI(I1-I4)/4(0…10V) | 2 relays(10A) | NO | NO | NO | YES | 180 |
