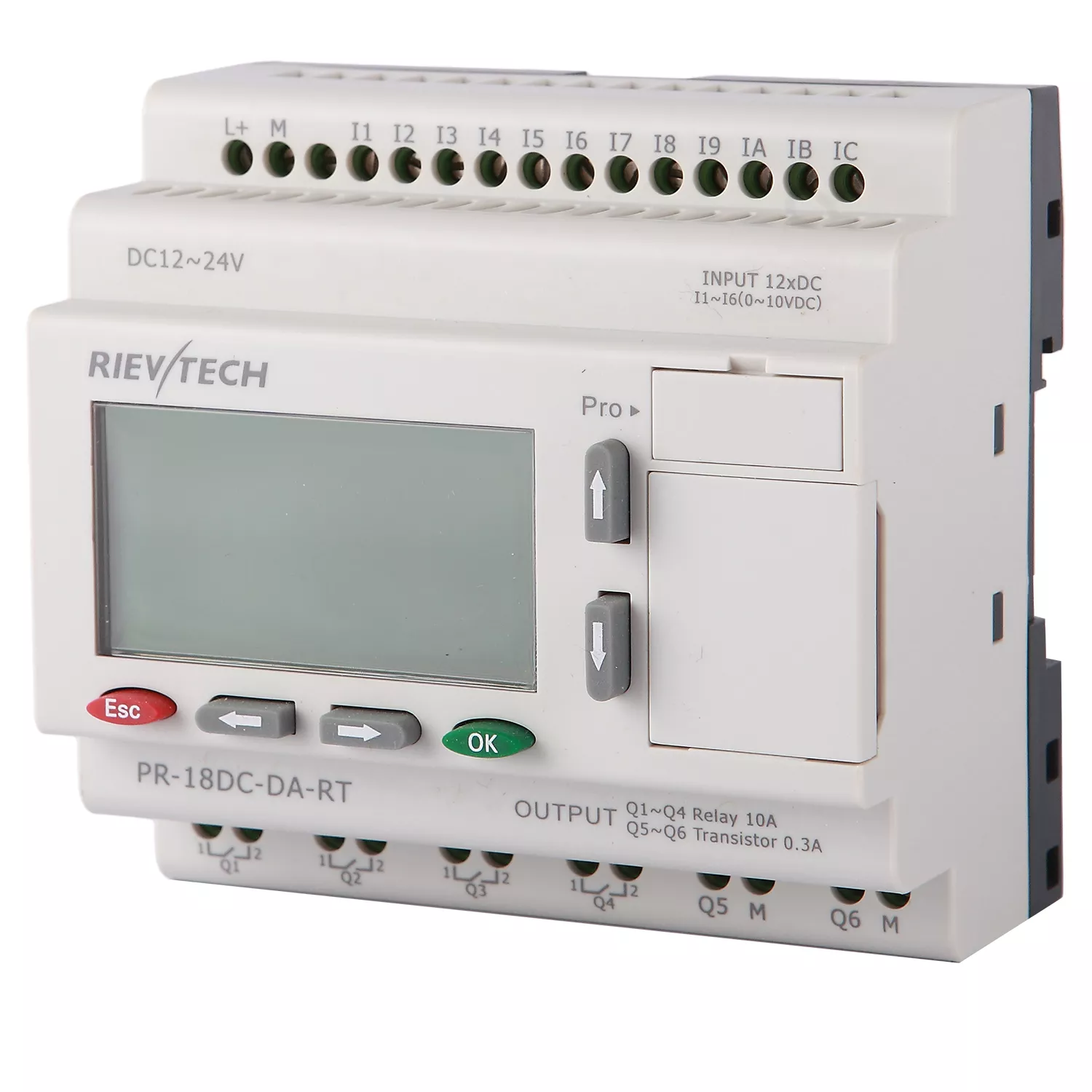

PR-18(12I/6O) Series

PR-18 range(Micro PLC) is advanced level model, incorporating a good mix of digital and Analogue IO, Integrated High Speed inputs and PWM output, clock with calendar, counters , timers , integrated keypad display, serial communications and an expansion port. Available in 120V/240VAC or 12V/24VDC versions ; Easy to configure with drag-and-drop function blocks using FREE xLogicSoft software. Program capacity has been enlarged to 1024 function blocks as well, also high-speed count reaches 60KHZ.

PR-18 range offers 4-line*16 characters LCD display and keypad for program modification or display and control whilst program is running. An expansion port allows the connection of up to 16 expansion modules, extending the I/O channel count. Now it is also possible to use the analog output module to solve simple closed-loop control tasks. Heating and cooling systems can be designed with the RTD PT100 module using special functions for PI control, ramp response and analog multiplexer.
