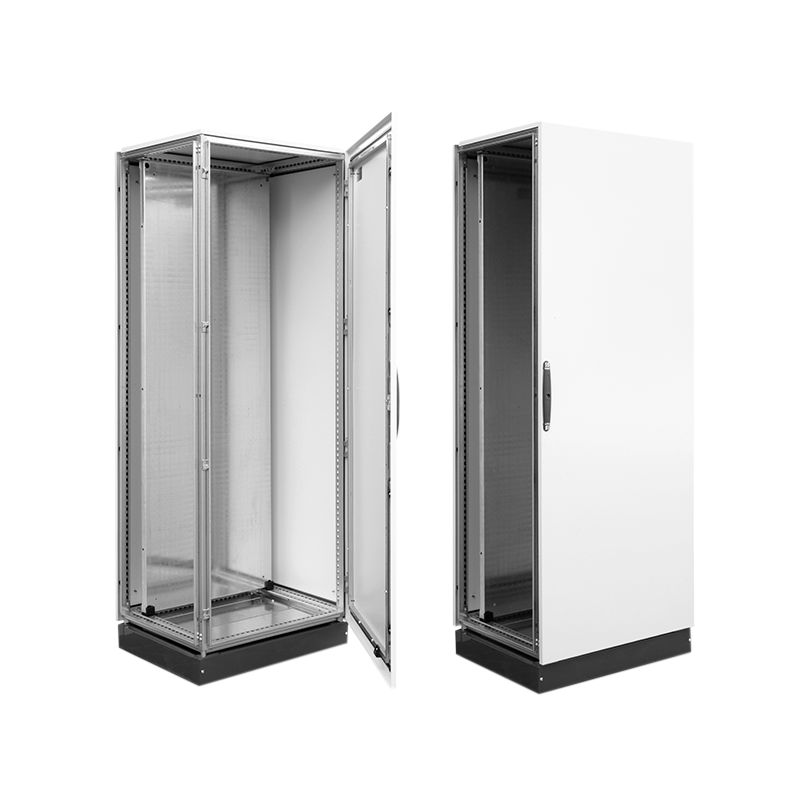

Floor standing enclosures SERIES OK IP55
Manufacturer: Quadritalia
The new series of assemblable enclosures OK is the latest product developed by Quadritalia, it is the result of a revolutionary technical project and of the newest solutions developed by our R&D Department. The dismantable frame is made up of symmetrical elements in Sendzimir, which are manufactured on a profiling line and have no welded parts, and are not painted, ensuring a high EMC compatibility. Together with the patented orthogonal corner joint in zamak alloy, these elements guarantee the utmost stiffness of the OK structure. The OK series enclosures are available in two versions: pre-assembled (OKB), and disassembled supplied in flat pack (OKK). Both these versions can be ordered in all the configurations shown in the present catalogue, suitable for the automation and power distribution market.
Description
Painting: with epoxy-polyester thermosetting powders
- Plinth painted RAL 7035 textured finish, epoxy polyester powder coating
- Plinth painted RAL 7024 glossy finish, epoxy polyester powder coating
Protection:
- IP55-IP65, IEC 62208 ; CEI EN 62262
- IK10, IEC 62208 ; CEI EN 62262
- Nema type 1-12: CSA22.2,941 e 942, UL508a
General technical characteristics:
- Thickness sheet of external panels 15/10
- Thickness sheet of doors 20/10
- Thickness sheet of mounting plates 25/10
Frame supplied as flat pack, includes:
- Set of 4 vertical uprights
- Pre-assembled base element with adjustable cable entry flanges
- Pre-assembled top element with removable panel
- Screws (16 viti M8)
- Assembling hardware
- Assembling instructions booklet
Supply:
- 1 pack for the set of vertical uprights
- 1 pack for top and base elements (+ screws)
